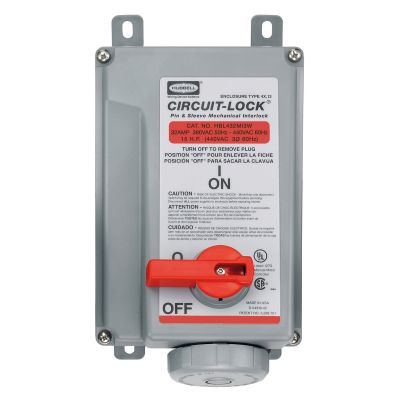

Hubbell Wiring HBL432MI3W

Wiring Device-Kellems HBL Circuit-Lock HBL432MI3W 3-Phase Female Grounding Non-NEMA Standard UnFusible Watertight Pressure Screw Terminal Pin and Sleeve Mechanical Interlock, 380/440 VAC, 32 A, 3 Poles, 4 Wires
Receptacles
6820410 HBL432MI3W
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 32
  • Color: Red
  • Dimensions: 8-3/4 in L x 7-3/4 in W x 11-1/2 in H
  • Enclosure: NEMA 4X/12K/IP67
  • Material: Thermoplastic
  • Mounting: Threaded
  • Number of Poles: 3
  • Number Of Wires: 4
  • Power Rating: 14080
  • Type: 3-Phase Female Grounding Non-NEMA Standard UnFusible Watertight Pressure Screw Terminal
  • Voltage Rating: 380/440
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 32A 380/415V, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
  • Features
  • Insulated non-metallic housing, super tough, non-conductive and chemical-resistant for heavy duty industrial environments
  • IEC pin and sleeve devices are color coded by voltage for easy identification
  • Self-closing gasketed cover, detents into position to fully close automatically
  • Lockable handle to meet OSHA lockout tagout regulations
  • 2-stage interlocking mechanism to help defeat tampering
  • Watertight conduit hub and grounding plate for use on metallic conduit
  • Color coded rating pad and receptacle mount to signify voltage
  • Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
  • Horsepower rated disconnect switch handles large motor loads
  • DIN rail mounted switch for easy installation and replacement
  • Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
  • Reverse service has dependable solid brass pins for longer life and reliable electrical contact
  • Comes with brass inserts and stainless steel screws for higher torque and better sealing
  • Three molded-in conduit drill points are located on the top, bottom and back surface of enclosure
  • Adjustable mounting feet are ductile to allow mounting on irregular surfaces
