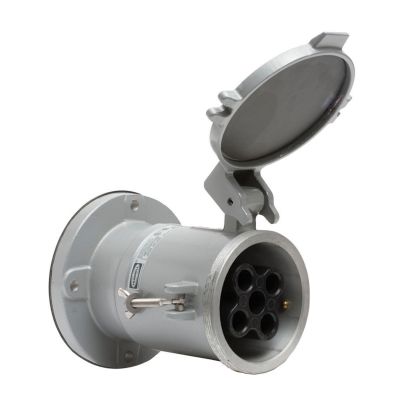

Hubbell Wiring HBL5200RS1W

Wiring Device-Kellems HBL Insulgrip HBL5200RS1W 3-Phase Flanged Grounding Non-NEMA Style 1 Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 600 VAC, 200 A, 4 Poles, 5 Wires, Black/Gray
Receptacles
4559337 HBL5200RS1W
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL5200RS1W
  • Amperage Rating: 200
  • Color: Black/Gray
  • Dimensions: 7.39 in L x 5.63 in W
  • Grade: Industrial
  • Material: Thermoplastic
  • Number of Poles: 4
  • Number Of Wires: 5
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: 3-Phase Flanged Grounding Non-NEMA Style 1 Single Standard Watertight Screw Mount
  • Voltage Rating: 600
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Receptacle, 200A 600V AC, 4-Pole 5-Wire Grounding, Terminal Screws and Black, Watertight
QTY
Add to Wishlist
  • Features
  • Thermoplastic housing provides excellent insulating, impact, corrosion and UV-resistant properties
  • Protects users and internal components in the roughest of environments
  • Locking ring provides a UL type 4X watertight and dusttight seal when the male and female devices are connected
  • Sleeve O-ring seal provides a watertight and dusttight seal around the sleeves, assures that contamination will not enter wire chamber
  • All brass sleeve contacts provide reliable electrical contact with mating pins, also with minimum heat build up over time
  • Catalog number and rating visible while in use
  • Markings are color coded differentiating style I and style II devices
  • Housing seal provides a watertight and dusttight seal when mated with receptacle or connector
  • Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
  • Shroud protects contact sleeves from deforming from physical abuse
  • Molded thermoset polyester provides high resistance to electrical tracking
  • Withstands higher temperatures which may result from overload or arcing
  • Thermoset properties provide dimensional stability for this critical assembly
  • Maintains high unit pressure on mating sleeves
  • Ensures reliable electrical contact while minimizing heat rise due to normal pin wear over time
  • Closure cap with neoprene gasket provides a 4X watertight seal while not in use
  • Beryllium copper spring maintains high unit pressure on mating sleeves
  • Watertight neoprene sealing glands for reliable seal
  • Spring loaded, gasketed cover for dusttight seal
  • Pin chamber confines arcing within the interior chamber
