Hubbell Wiring HBL520R7W

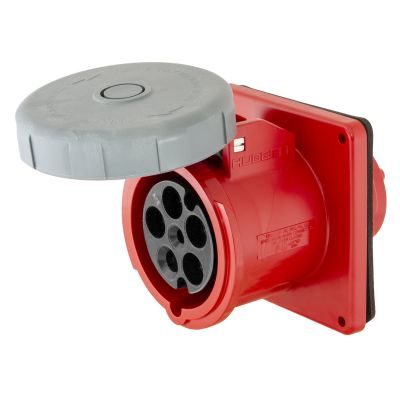

Wiring Device-Kellems HBL HBL520R7W 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 277/480Y VAC, 20 A, 4 Poles, 5 Wires, Red
Receptacles
4579253
HBL520R7W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Red
- Dimensions: 3-3/4 in L x 3-3/4 in W
- Enclosure: IP67
- Grade: Industrial
- Material: Thermoplastic
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount
- Voltage Rating: 277/480Y VAC
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
- Features
- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Amperage/voltage rating and catalog number molded-in housing for easy identification
- Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
- Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
- Super tough plug shroud protects pins from deforming from physical abuse
- Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
- Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
- Molded thermoset polyester provides high resistance to electrical tracking
- Withstands higher temperatures which may result from overload or arcing
- Thermoset properties provide dimensional stability for this critical assembly
- Feature patented swiveling pressure pad terminal screws and prevent damage to conductor strands
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
