Hubbell Wiring HBL5251

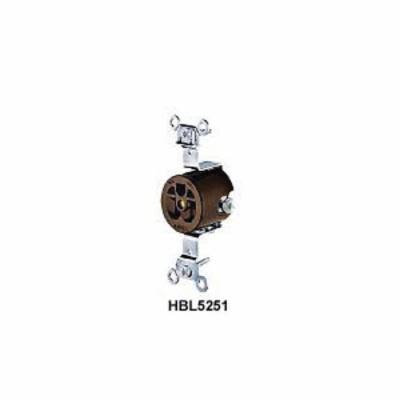

Hubbell HBL HBL5251 Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Receptacles
421430
HBL5251
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Brown
- Dimensions: 3.28 in H x 0.92 in D
- Grade: Heavy Duty/Specification
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Side Wire
- Type: Standard
- Voltage Rating: 125
Hubbell HBL Straight Blade Receptacle, Standard, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Heavy Duty/Specification Grade, -40 to 75 deg C, Side Wire Terminal, Nylon, Brown, 3.28 in H x 0.92 in D Dimensions
- Features
- 14 to 10 AWG copper stranded or solid conductor only
- Single receptacle style
- 0.031 in phosphor bronze power contact
- Withstands 2000 VAC minimum dielectric voltage
- Reinforced PET base material
- 8 to 32 brass/nickel plated for neutra
