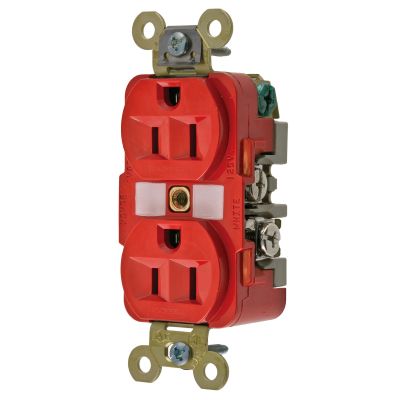

Hubbell Wiring HBL5262R
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack.
Supporting Information
- Back wired ground terminal allows faster, easier installation|One-piece brass integral ground strap|Deep body design with circuit ID face
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Back wired ground terminal allows faster, easier installation
- 1-piece brass integral ground strap
- Finder groove face
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- #10-32 silicon bronze (nickel plated if neutral) terminal screw
- #10-32 silicon bronze (green) ground screw
- Nylon top material
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel AUTO ground clip
- Steel zinc plated mounting screw
- Traditional face
- Made of reinforced pet
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
- Brand: Hubbell WiringAmperage Rating: 15Color: RedDimensions: 3.28 x 1.65 x 1.19Grade: Hospital
