Hubbell Wiring HBL5262SA

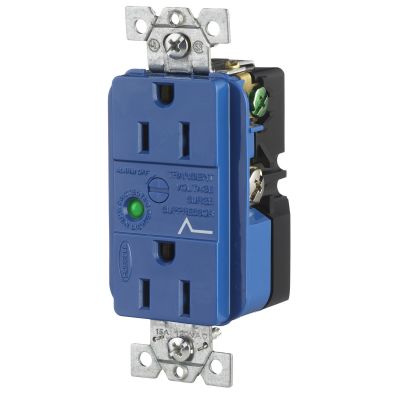

Wiring Device-Kellems SpikeShield HBL5262SA Decorator Duplex Grounding Straight Blade Receptacle With Light and Alarm, 125 VAC, 15 A, 60 Hz, 1 ph Phase
Receptacles
1149683
HBL5262SA
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Class: Common/Normal Mode
- Color: Blue
- Connection: Screw Terminal
- Environmental Conditions: UL 94 V-0 Flammability Rating
- Frequency Rating: 60
- Material: Composite
- Mounting: Threaded
- Operating Temperature: 32 to 140
- Outlet: Straight Blade
- Phase: 1
- Response Time: 5
- Series: Decorator
- Size: 1.72 in W x 1.6 in D x 4.04 in H
- Type: Duplex Grounding
- Type of Indicators: LED/Audible Alarm
- Voltage Rating: 125
Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 15A 125V, 5-15R, Blue
- Features
- Withstands 2000 VAC dielectric voltage
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Alert alarm sounds when surge protection is no longer functioning
- Audible and visual alarm
- Nylon top and base material
- 0.031 in brass power contact
- Tandem modified bypass contact design
- 0.05 zinc coated steel mounting strap
- 0.031 in brass clamping plate
- #8-32 brass terminal screw
- Steel (green) grounding screw
- Steel zinc plated mounting screw
- Nylon alarm muting screw
