Hubbell Wiring HBL5262WR

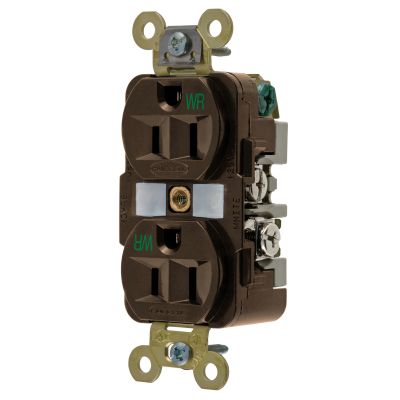

Wiring Device-Kellems HBL5262WR 1-Phase Grounding Extra Heavy Duty Screw Mount Weather Resistant Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Receptacles
7224074
HBL5262WR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Brown
- Dimensions: 3.28 x 1.65 x 1.19
- Grade: Specification
- Horsepower: 1/2
- Material: Thermoplastic/Composite
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired
- Type: 1-Phase Grounding Extra Heavy Duty Screw Mount Weather Resistant
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Duplex Receptacle, 1-Phase Grounding Extra Heavy Duty Screw Mount Weather Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Specification Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.65 x 1.19 in
- Features
- Weather resistance complies with national electrical code requirements
- Finder groove face style
- One piece brass integral ground strap
- Deep body design with circuit inside diameter face
- Traditional face shape
- #10-32 silicon bronze terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip and brass clamp
- Steel, zinc plated mounting screws
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94V-2 top, UL 94V-0 base flammability
- Weather-resistant
