Hubbell Wiring HBL52CM62

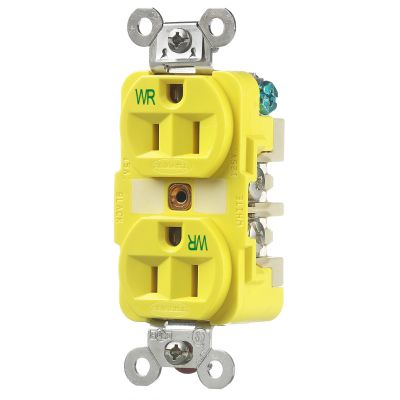

Wiring Device-Kellems HBL52CM62 1-Phase Corrosion Resistant Duplex Outlet Grounding Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Receptacles
554260
HBL52CM62
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Dimensions: 3.28 x 1.65 x 1.19
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Corrosion Resistant Duplex Outlet Grounding Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Corrosion Resistant Duplex Outlet Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 3.28 x 1.65 x 1.19 in
- Features
- Finder groove face
- #8-32 brass nickel plated for neutral terminal screw
- #8-32 brass multiple drive (green) ground screw
- Reinforced PET base
- 0.037 in brass power contact
- 0.05 in nickel plated brass mounting strap
- Withstands 2000 VAC dielectric voltage
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- 1 piece brass integral ground strap
- Back wired ground terminal allows faster, easier installation
- Deep body design with circuit ID face
- Corrosion resistant
- 3-wires grounding
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
