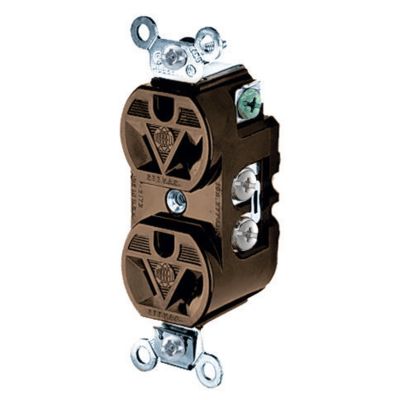

Hubbell Wiring HBL5302
Wiring Device-Kellems HBL5302 1-Phase Duplex Grounding Heavy Duty Screw Mount Straight Blade Receptacle, 277 VAC, 15 A, 2 Poles, 3 Wires, Brown
Receptacles
140752
HBL5302
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Brown
- Dimensions: 3.28 x 1.33 x 1.19
- Grade: Commercial
- Horsepower: 2
- Material: Thermoplastic
- Nema Rating: 7-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired
- Type: 1-Phase Duplex Grounding Heavy Duty Screw Mount
- Voltage Rating: 277
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Screw Mount, 277 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 7-15R NEMA Rating, Commercial Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic, Brown, 3.28 x 1.33 x 1.19 in
- Features
- Finder groove face
- #8-32 brass nickel plated for neutral terminal screw
- #8-32 brass multiple drive (green) ground screw
- Phenolic base material
- 0.031 in phosphor bronze power contacts
- 0.05 in steel plated mounting strap
- Withstands 2000 VAC dielectric voltage
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Auto ground clip
- 3-wires grounding
- Indoor dry unless protected by additional means
