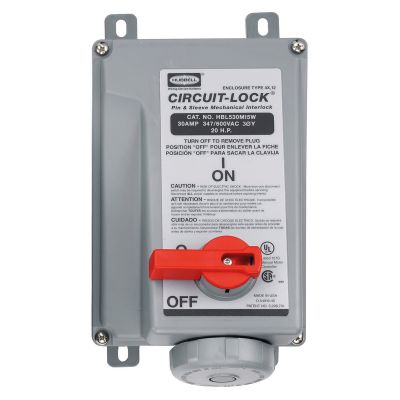

Hubbell Wiring HBL530MI5W

Wiring Device-Kellems HBL Circuit-Lock HBL530MI5W 3-Phase Female Grounding Industrial Grade Standard Unfused Pressure Screw Terminal Watertight Pin and Sleeve Mechanical Interlock, 347/600 VAC, 30 A, 4 Poles, 5 Wires
Receptacles
129414 HBL530MI5W
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL530MI5W
  • Amperage Rating: 30
  • Color: Black
  • Dimensions: 8-3/4 in L x 7-3/4 in W x 11-1/4 in H
  • Enclosure: IP67
  • Material: Thermoplastic
  • Mounting: Threaded
  • Number of Poles: 4
  • Number Of Wires: 5
  • Power Rating: 18000
  • Type: 3-Phase Female Grounding Industrial Grade Standard Unfused Pressure Screw Terminal Watertight
  • Voltage Rating: 347/600
Wiring Device-Kellems, HBL530MI5W, Pin and Sleeve Mechanical Interlock, 3-Phase Female Grounding Industrial Grade Standard Unfused Pressure Screw Terminal Watertight, 347/600 VAC, 30 A, 18000 W Power, 4 Pole, 5 Wires, 1 in Hub, IP67 Enclosure, Threaded Mounting, Thermoplastic, Black, 8-3/4 in L x 7-3/4 in W x 11-1/4 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environments
  • IEC pin and sleeve devices are color coded by voltage for easy identification
  • Self-closing gasketed cover, detents into position to fully close automatically
  • Lockable handle to meet OSHA lockout tagout regulations
  • 2-stage interlocking mechanism to help defeat tampering
  • Watertight conduit hub and grounding plate for use on metallic conduit
  • Color coded rating pad and receptacle mount to signify voltage
  • Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
  • Horsepower rated disconnect switch handles large motor loads
  • DIN rail mounted switch for easy installation and replacement
  • Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
  • Reverse service has dependable solid brass pins for longer life and reliable electrical contact
  • Comes with brass inserts and stainless steel screws for higher torque and better sealing
  • Three molded in conduit drill points are located on the top, bottom and back surface of enclosure
  • Adjustable mounting feet are ductile to allow mounting on irregular surfaces
  • Plug cannot be removed until the switch is turned OFF
