Hubbell Wiring HBL530R7W

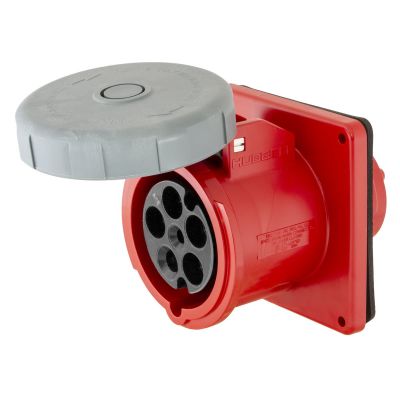

Wiring Device-Kellems HBL HBL530R7W 3-Phase Grounding Single Flanged Standard Screw Mount Watertight Pin and Sleeve Receptacle, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Red
Receptacles
7651474 HBL530R7W
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 30
  • Color: Red
  • Dimensions: 3-3/4 in L x 3-3/4 in W
  • Enclosure: IP67
  • Grade: Industrial
  • Material: Thermoplastic
  • Number of Poles: 4
  • Number Of Wires: 5
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: 3-Phase Grounding Single Flanged Standard Screw Mount Watertight
  • Voltage Rating: 277/480
Wiring Device-Kellems HBL Pin and Sleeve Receptacle, 3-Phase Grounding Single Flanged Standard Screw Mount Watertight, 277/480 VAC, 30 A, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 3-3/4 in L x 3-3/4 in W
  • Features
  • Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
  • Amperage/voltage rating and catalog number molded in housing for easy identification
  • Lockout tagout, tapered opening on plug shroud accommodates up to 3/8 in lock shackle diameter
  • Heavy duty external cord grips provide maximum cord retention to maintain secure terminations
  • Super tough plug shroud protects pins from deforming from physical abuse
  • Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
  • Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
  • Molded thermoset polyester provides high resistance to electrical tracking
  • Withstands higher temperatures which may result from overload or arcing
  • Thermoset properties provide dimensional stability for this critical assembly
  • Feature patented swiveling pressure pad terminal screws and prevent damage to conductor strands
  • Corrosion resistant self-closing gasketed cover
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Super tough insulated non-metallic house for impact and chemical resistance
  • Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
