Hubbell Wiring HBL530R9W

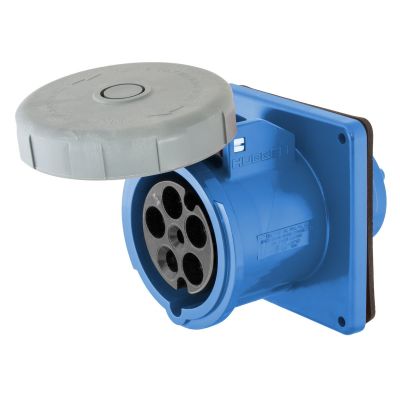

Wiring Device-Kellems HBL530R9W 3-Phase Grounding Single Flanged Watertight Screw Mount Pin and Sleeve Receptacle, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, Blue
Receptacles
6963204
HBL530R9W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Blue
- Dimensions: 3.75 in W x 3.09 in D x 4.7 in H
- Enclosure: IP67
- Grade: Industrial
- Material: Thermoplastic
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase Grounding Single Flanged Watertight Screw Mount
- Voltage Rating: 120/208Y VAC
Wiring Device-Kellems, HBL530R9W, Pin and Sleeve Receptacle, 3-Phase Grounding Single Flanged Watertight Screw Mount, 120/208Y VAC, 30 A, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 3.75 in W x 3.09 in D x 4.7 in H Dimensions
- Features
- 8 to 2 AWG copper wire terminal accommodation
- Zytel® 101 nylon mounting flange
- 3000 VAC minimum dielectric withstand voltage
- 3-phase
- High impact thermoset contact carrier and retainer
- Solid neoprene gaskets
- Rynite® SST35 cover arm and cover
- Nickel plated brass cover screw/rivet
- Polycarbonate rotating sealing disc
- Brass ground/phase sleeve
