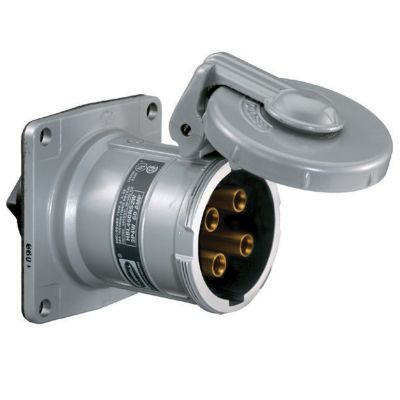

Hubbell Wiring HBL530RS1WR
Wiring Device-Kellems HBL Insulgrip Pin and Sleeve Receptacle, 3-Phase Grounding Style 1 Reversed Single Flanged Standard Screw Mount Watertight, 600 VAC, 30 A, 4 Pole, 5 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black/Gray, 3.89 in L x 3.4 in W
Supporting Information
- Watertight neoprene sealing glands for reliable seal|Pin chamber confines arcing within the interior chamber|Spring-Loaded, gasketed cover for dust-tight seal
- Thermoplastic housing provides excellent insulating, impact, corrosion and UV resistant properties
- Protects users and internal components in the roughest of environments
- Locking ring provides a UL type 4X watertight and dust tight seal when the male and female devices are connected
- Sleeve O-ring seal provides a watertight and dust tight seal around the sleeves, assures that contamination will not enter wire chamber
- All brass sleeve contacts provide reliable electrical contact with mating pins, also with minimum heat build-up over time
- Catalog number and rating visible while in use
- Markings are color coded differentiating style I and style II devices
- Housing seal provides a watertight and dust tight seal when mated with receptacle or connector
- Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
- Shroud protects contact sleeves from deforming from physical abuse
- Molded thermoset polyester provides high resistance to electrical tracking
- Withstands higher temperatures which may result from overload or arcing
- Thermoset properties provide dimensional stability for this critical assembly
- Maintains high unit pressure on mating sleeves
- Ensures reliable electrical contact while minimizing heat rise due to normal pin wear over time
- Closure cap with neoprene gasket provides a 4X watertight seal while not in use
- All brass sleeve contacts provide reliable electrical contact with mating pins
- Watertight neoprene sealing glands for reliable seal
- Spring loaded, gasketed cover for dust tight seal
- Pin chamber confines arcing within the interior chamber
- Brand: Hubbell WiringAmperage Rating: 30Color: Black/GrayDimensions: 3.89 in L x 3.4 in W
