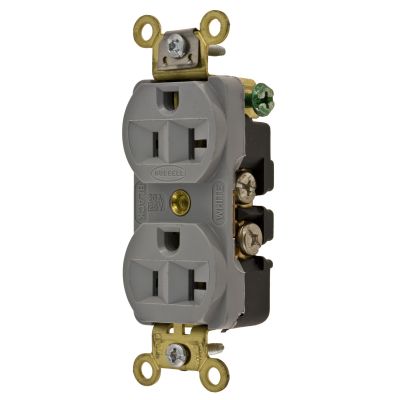

Hubbell Wiring HBL5352GY
Wiring Device-Kellems HBL HBL5352GY 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Receptacles
1555145
HBL5352GY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray
- Dimensions: 3.28 x 1.33 x 1.05
- Grade: Commercial/Industrial
- Horsepower: 1
- Material: Thermoplastic/Composite
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL5352GY, Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount, Series: HBL, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Gray, 3.28 x 1.33 x 1.05 in Dimensions
- Features
- Slender compact design
- Triple wipe contacts
- Brass mounting strap
