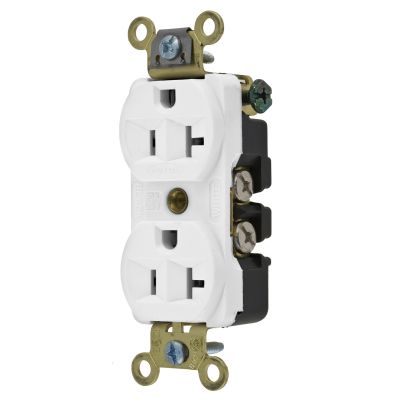

Hubbell Wiring HBL5352W
Wiring Device-Kellems HBL5352W 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
524136
HBL5352W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 3.28 x 1.33 x 1.05
- Grade: Commercial/Industrial
- Horsepower: 1
- Material: Thermoplastic/Composite
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, White, 3.28 x 1.33 x 1.05 in
- Features
- Finder groove face
- #8-32 brass nickel plated for neutral terminal screw
- #8-32 brass multiple drive (green) ground screw
- Reinforced PET base
- 0.037 in phosphor bronze power contacts
- 0.05 in brass mounting strap
- Withstands 2000 VAC dielectric voltage
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Slender/compact design
- Brass mounting strap
- Triple wipe contacts
- 3-wires grounding
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
