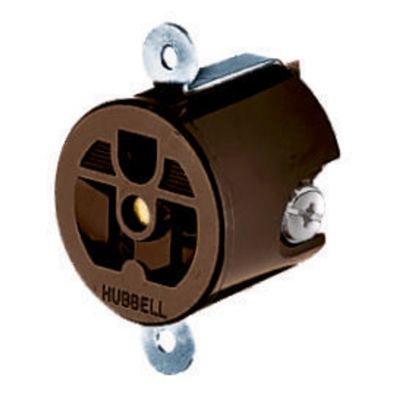

Hubbell Wiring HBL5358
Wiring Device-Kellems HBL HBL5358 1-Phase Duplex Heavy Duty Standard Traditional Panel Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Receptacles
6794840
HBL5358
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Brown
- Dimensions: 1.75 x 1.38 x 1.12
- Grade: Industrial
- Horsepower: 1
- Material: Thermoplastic
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Duplex Heavy Duty Standard Traditional Panel Mount
- Voltage Rating: 125
Wiring Device-Kellems HBL Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Standard Traditional Panel Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic, Brown, 1.75 x 1.38 x 1.12 in
- Features
- Slender compact design
- Triple wipe contacts
- Panel mount
