Hubbell Wiring HBL5361IWR

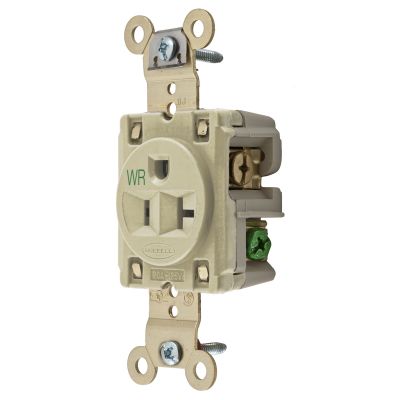

Wiring Device-Kellems HBL5361IWR 1-Phase Self-Grounding Extra Heavy Duty Standard Single Weather-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Receptacles
7151617
HBL5361IWR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Ivory
- Dimensions: 3.28 x 1.63 x 1.19
- Grade: Industrial
- Horsepower: 1
- Material: Thermoplastic/Composite
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Self-Grounding Extra Heavy Duty Standard Single Weather-Resistant Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Self-Grounding Extra Heavy Duty Standard Single Weather-Resistant Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Ivory, 3.28 x 1.63 x 1.19 in
- Features
- Weather resistance complies with national electrical code requirements
- Back wired ground terminal allows faster, easier installation
- #10 to 32 brass terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip and brass clamp
- Steel zinc plated mounting screw
- Withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- Screw mounted
