Hubbell Wiring HBL5362RWR

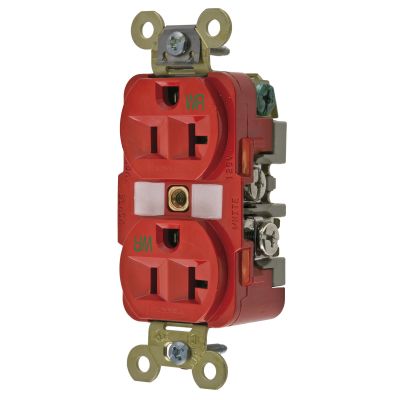

Wiring Device-Kellems HBL HBL5362RWR 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Weather-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Receptacles
7055143
HBL5362RWR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Red
- Dimensions: 3.28 x 1.65 x 1.19
- Grade: Industrial/Specification
- Horsepower: 1
- Material: Thermoplastic/Composite
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Weather-Resistant Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems HBL Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Weather-Resistant Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial/Specification Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Red, 3.28 x 1.65 x 1.19 in
- Features
- 1-piece brass ground strap
- Exclusive bypass contact design for greater contact force and reduced heat buildup
- Barbed assembly arms reduce possibility of face/base separation
- Finder groove face
