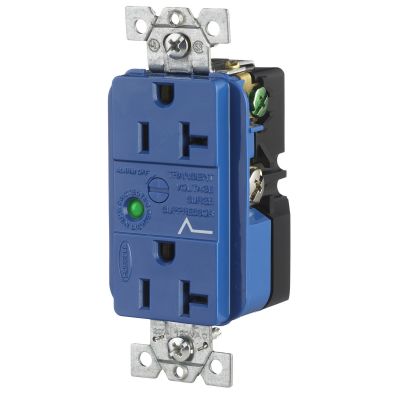

Hubbell Wiring HBL5362SA
Wiring Device-Kellems SpikeShield HBL5362SA Decorator Duplex Outlet Grounding Straight Blade Receptacle With Light and Alarm, 125 VAC, 20 A, 60 Hz, 1 ph Phase
Receptacles
1555150
HBL5362SA
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Class: Common/Normal Mode
- Color: Blue
- Connection: Screw Terminal
- Environmental Conditions: UL 94 V-2 Flammability Rating
- Frequency Rating: 60
- Material: Composite
- Mounting: Threaded
- Operating Temperature: 32 to 140
- Outlet: Straight Blade
- Phase: 1
- Response Time: 5
- Series: Decorator
- Size: 1.72 in W x 1.6 in D x 3.28 in H
- Type: Duplex Outlet Grounding
- Type of Indicators: LED/Audible Alarm
- Voltage Rating: 125
Wiring Device-Kellems, HBL5362SA, Straight Blade Receptacle, Duplex Outlet Grounding, Series: Decorator, 125 VAC, 20 A, 60 Hz Frequency, 1 ph, Straight Blade Outlet, Class: Common/Normal Mode, 5 ns Response, Indicators: LED/Audible Alarm, Screw Terminal Connection, Threaded Mounting, 1.72 in W x 1.6 in D x 3.28 in H Size, 32 to 140 deg F Operating, Composite, Blue, Environmental Conditions: UL 94 V-2 Flammability Rated
- Features
- Steel zinc plated mounting screw
- #8-32 brass terminal screw
- Steel (green) grounding screw
- Nylon device base
- 0.031 in brass power contact
- 0.05 in zinc coated steel mounting strap
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Alert alarm sounds when surge protection is no longer functioning
- 3-wires grounding
