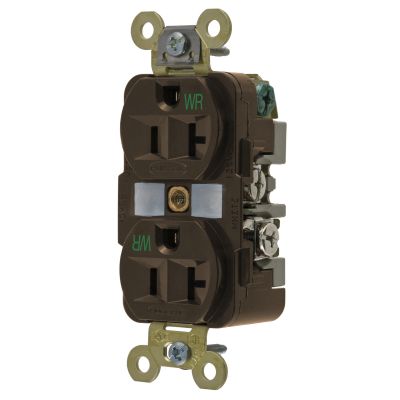

Hubbell Wiring HBL5362WR
Straight Blade Receptacle, Weather-Resistant Duplex, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R
Supporting Information
- Weather-resistance|Deep body design with circuit ID face|One-piece brass integral ground strap
- Weather resistance complies with national electrical code requirements
- Finder groove face style
- One piece brass integral ground strap
- Deep body design with circuit inside diameter face
- Traditional face shape
- #10-32 silicon bronze terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip and brass clamp
- Steel, zinc plated mounting screws
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94V-2 top, UL 94V-0 base flammability
- Weather-resistant
- Brand: Hubbell WiringAmperage Rating: 20Color: BrownDimensions: 3.28 x 1.65 x 1.19
