Hubbell Wiring HBL53CM61

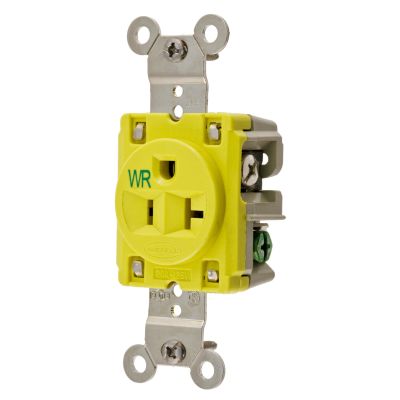

Wiring Device-Kellems HBL53CM61 1-Phase Corrosion Resistant Extra Heavy Duty Isolated Ground Single Standard Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Receptacles
140826
HBL53CM61
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Dimensions: 3.28 x 1.63 x 1.19
- Grade: Marine
- Horsepower: 1
- Material: Thermoplastic/Composite
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Corrosion Resistant Extra Heavy Duty Isolated Ground Single Standard Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Corrosion Resistant Extra Heavy Duty Isolated Ground Single Standard Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Marine Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Yellow, 3.28 x 1.63 x 1.19 in
- Features
- 1-piece nickel plated brass integral ground strap
- Unique bypass contact design
- Nylon face and PBT base
- 0.037 in nickel plated brass power contact
- Brass ground contact
- 0.05 in nickel plated brass mounting strap
- Stainless steel auto, self-grounding clip and mounting screws
- Certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- Ratings are a permanent part of the device product identification
- 12 to 10 AWG copper stranded or solid conductor terminal accommodation
- Terminals identified in accordance with UL 498 and CSA
- Corrosion-resistant
