Hubbell Wiring HBL53CM62

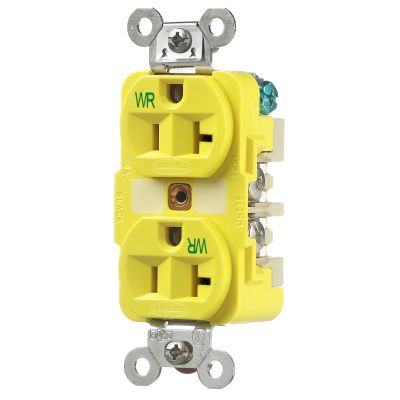

Wiring Device-Kellems HBL53CM62 1-Phase Corrosion Resistant Grounding Extra Heavy Duty Screw Mount Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Receptacles
1555151
HBL53CM62
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Dimensions: 3.28 x 1.65 x 1.19
- Grade: Specification
- Horsepower: 1
- Material: Thermoplastic/Composite
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Corrosion Resistant Grounding Extra Heavy Duty Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Duplex Receptacle, 1-Phase Corrosion Resistant Grounding Extra Heavy Duty Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Yellow, 3.28 x 1.65 x 1.19 in
- Features
- Back wired ground terminal allows faster, easier installation
- One piece brass integral ground strap
- Finder groove face
- Deep body design with circuit inside diameter face
- Nylon face and PBT base
- 0.036 in nickel plated brass by-pass power contact
- 0.031 in brass ground contact
- Nickel plated brass clamping plate
- Plated brass terminal screws
- 0.05 in nickel plated brass mounting strap
- Stainless steel automatic self-grounding clip and mounting screws
- Certified for current interrupting at full rated current
- Withstand 2000 VAC minimum dielectric voltage
- Ratings are a permanent part of the device product identification
- 12 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Terminals identified in accordance with UL 498 and CSA
- UL 94V-2 top, UL 94V-0 base flammability
- Corrosion-resistant
