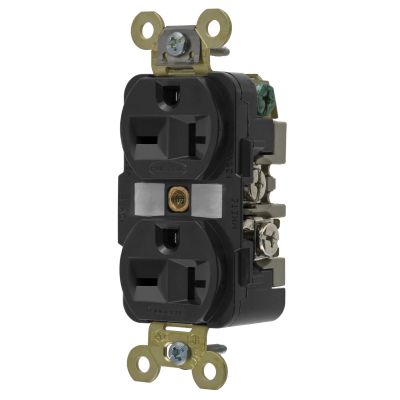

Hubbell Wiring HBL5462BK
Wiring Device-Kellems HBL5462BK 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Receptacles
7048452
HBL5462BK
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Black
- Dimensions: 3.28 x 1.65 x 1.19
- Grade: Industrial
- Horsepower: 2
- Material: Thermoplastic/Composite
- Nema Rating: 6-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Black, 3.28 x 1.65 x 1.19 in
- Features
- Back wired ground terminal allows faster, easier installation
- 1-piece brass integral ground strap
- Finder groove face
- Deep body design with circuit ID face
- Corrosion resistant
