Hubbell Wiring HBL5462GY

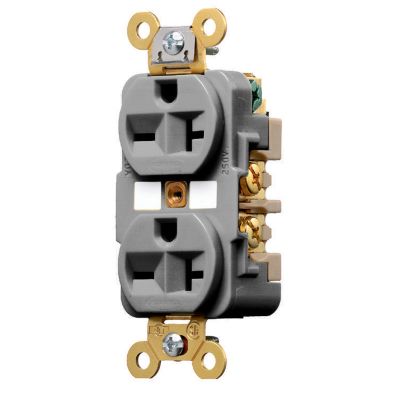

Wiring Device-Kellems HBL5462GY 1-Phase Grounding Extra Heavy Duty Screw Mount Straight Blade Duplex Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
Receptacles
4487557
HBL5462GY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray
- Dimensions: 3.28 x 1.65 x 1.19
- Grade: Specification
- Horsepower: 2
- Material: Thermoplastic/Composite
- Nema Rating: 6-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Grounding Extra Heavy Duty Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Straight Blade Duplex Receptacle, 1-Phase Grounding Extra Heavy Duty Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Gray, 3.28 x 1.65 x 1.19 in
- Features
- Deep nylon body design delivers increased impact resistance
- One piece brass integral ground strap
- Finder groove face
- Deep body design with circuit inside diameter face
- Traditional face shape
- #8-32 brass terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip and mounting screw
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94V-2 top, UL 94V-0 base flammability
