Hubbell Wiring HBL5478C

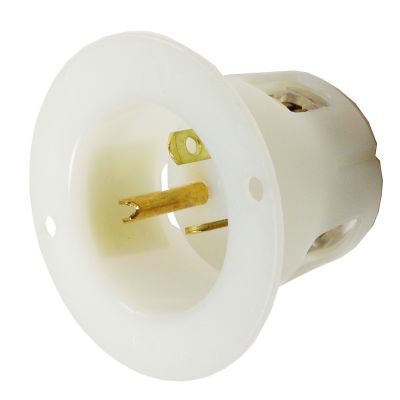

Wiring Device-Kellems Insulgrip HBL5478C 1-Phase Extra Heavy Duty Male Grounding Screw Mount Straight Blade Flanged Inlet, 250 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
418851
HBL5478C
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 1.72 x 2.56 x 2.56
- Grade: Industrial
- Horsepower: 2
- Material: Nylon
- Nema Rating: 6-20p
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Extra Heavy Duty Male Grounding Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Insulgrip Straight Blade Flanged Inlet, 1-Phase Extra Heavy Duty Male Grounding Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20P NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.72 x 2.56 x 2.56 in
- Features
- Brass power contacts
- #8-32 brass, multiple drive terminal screw material
- Withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL498 (brass, white, green) terminal identification
- 18 to 10 AWG solid or stranded copper conductor terminal accommodation
- Nylon top, polycarbonate base, 0.04 in brass power contacts, brass-nickel plated mounting screw 0.16 in Dia hole
