Hubbell Wiring HBL5479C

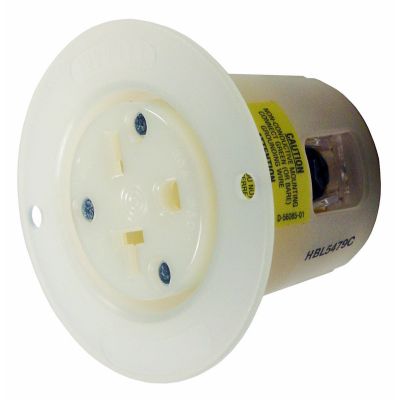

Wiring Device-Kellems Insulgrip HBL5479C 1-Phase Flanged Standard Sized Screw Mount Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
408955
HBL5479C
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 1.72 x 2.56 x 2.56
- Grade: Commercial/Industrial
- Horsepower: 2
- Material: Thermoplastic/Composite
- Nema Rating: 6-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Flanged Standard Sized Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Insulgrip Straight Blade Receptacle, 1-Phase Flanged Standard Sized Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, White, 1.72 x 2.56 x 2.56 in
- Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- Finder groove face
- Standard non-metallic flange
- #8-32 brass terminal screw and ground screw
- Nylon face and polycarbonate base
- 0.04 in brass power contact
- Brass, nickel plated mounting screw
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL498
- Ratings are a permanent part of the device product identification
- #14 to 12 AWG copper conductor
