Hubbell Wiring HBL560B7W

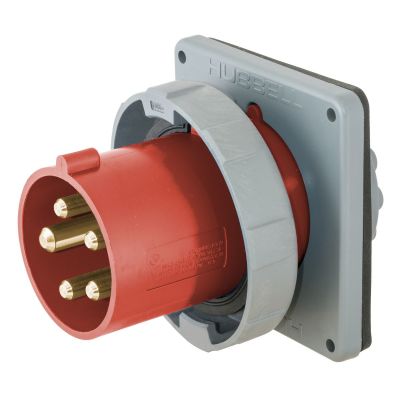

Wiring Device-Kellems HBL560B7W 3-Phase Flanged Male Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 277/480 VAC, 60 A, 4 Poles, 5 Wires, Red
Receptacles
4579270
HBL560B7W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 60
- Color: Red
- Dimensions: 4-1/2 in W x 4-1/2 in H
- Enclosure: IP67
- Grade: Industrial
- Horsepower: 10
- Material: Thermoplastic
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase Flanged Male Single Standard Watertight Screw Mount
- Voltage Rating: 277/480
Wiring Device-Kellems Pin and Sleeve Inlet, 3-Phase Flanged Male Single Standard Watertight Screw Mount, 277/480 VAC, 60 A, 10 hp, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 4-1/2 in W x 4-1/2 in H
- Features
- Provide safe and dependable performance in the most demanding environments
- Heavy duty non-conductive nylon construction provides impact and corrosion protection
- Thermoset polyester contact carriers withstand high temperatures and provide resistance to electrical tracking
- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
