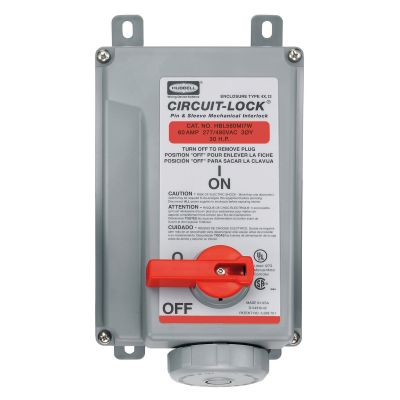

Hubbell Wiring HBL560MI7W

Wiring Device-Kellems Circuit-Lock HBL HBL560MI7W 3-Phase Female Grounding Industrial Grade Pressure Screw Terminal Standard Unfused Watertight Mechanical Interlock, 277/480 VAC, 60 A, 4 Poles, 5 Wires
Receptacles
4579305 HBL560MI7W
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL560MI7W
  • Amperage Rating: 60
  • Color: Red
  • Dimensions: 8.75 in L x 8.6 in W x 13.65 in H
  • Enclosure: NEMA 4X/12/IP67
  • Material: Thermoplastic
  • Mounting: Threaded
  • Number of Poles: 4
  • Number Of Wires: 5
  • Power Rating: 28800
  • Type: 3-Phase Female Grounding Industrial Grade Pressure Screw Terminal Standard Unfused Watertight
  • Voltage Rating: 277/480
Wiring Device-Kellems Circuit-Lock HBL Mechanical Interlock, 3-Phase Female Grounding Industrial Grade Pressure Screw Terminal Standard Unfused Watertight, 277/480 VAC, 60 A, 28800 W Power, 4 Pole, 5 Wires, NEMA 4X/12/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 8.75 in L x 8.6 in W x 13.65 in H
QTY
Add to Wishlist
  • Features
  • Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environment
  • IEC pin and sleeve devices are color coded by voltage for easy identification
  • Self-closing gasketed cover, detents into position to fully close automatically
  • Lockable handle to meet OSHA lockout tagout regulations
  • 2-stage interlocking mechanism to help defeat tampering
  • Watertight conduit hub and grounding plate for use on metallic conduit
  • Color coded rating pad and receptacle mount to signify voltage
  • Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
  • Horsepower rated disconnect switch handles large motor loads
  • DIN rail mounted switch for easy installation and replacement
  • Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
  • Reverse service has dependable solid brass pins for longer life and reliable electrical contact
  • Comes with brass inserts and stainless steel screws for higher torque and better sealing
  • (3) molded-in conduit drill points are located on the top, bottom and back surface of enclosure
  • Adjustable mounting feet are ductile to allow mounting on irregular surfaces
