Hubbell Wiring HBL560R7W

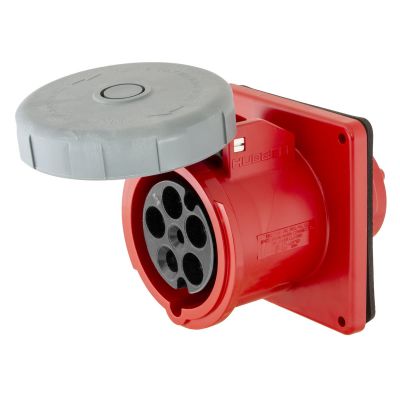

Wiring Device-Kellems HBL560R7W 3-Phase Female Single Flanged Watertight Screw Mount Pin and Sleeve Receptacle, 277/480Y VAC, 60 A, 4 Poles, 5 Wires, Red
Receptacles
6907912
HBL560R7W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 60
- Color: Red
- Dimensions: 4.5 in W x 5.1 in H
- Grade: Industrial
- Material: Thermoplastic
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: 3-Phase Female Single Flanged Watertight Screw Mount
- Voltage Rating: 277/480Y VAC
Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Female Single Flanged Watertight Screw Mount, 277/480Y VAC, 60 A, 4 Pole, 5 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 4.5 in W x 5.1 in H
- Features
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
