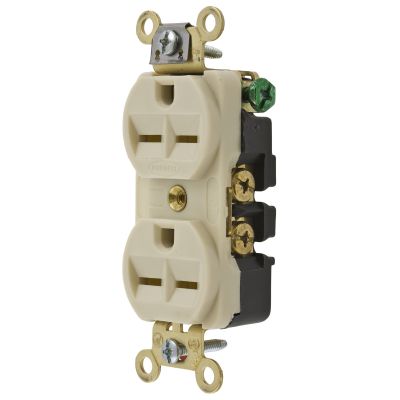

Hubbell Wiring HBL5652I
Wiring Device-Kellems Straight Blade Duplex Receptacle, 1-Phase Grounding Heavy Duty Screw Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, 6-15R NEMA Rating, Specification Grade, -40 to 75 deg C, Side Wire Terminal, Nylon, Ivory, 1-21/64 in W x 1-3/64 in D
Supporting Information
- Traditional face shape|0.037 in phosphor bronze power contact|One-piece brass integral ground strap|#8-32 brass terminal screw and ground screw|Stainless steel auto ground clip|Terminals identified in accordance with UL498|14 to 10 AWG copper stranded or solid conductor only terminal accommodation|Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent|0.05 in brass mounting strap|Steel, zinc plated mounting screws|Unique bypass contact design|Nylon top and reinforced PET base|Ratings are a permanent part of the device product identification|Finder groove face|Withstand 2000 VAC minimum dielectric voltage|UL 94V-2 flammability
- Brand: Hubbell Wiring
