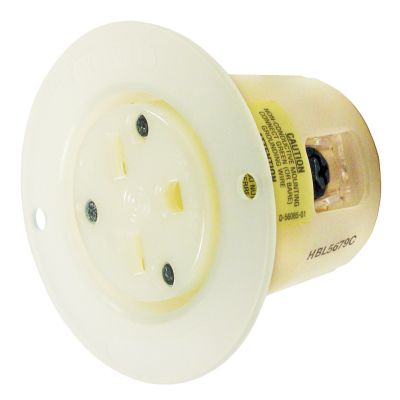

Hubbell Wiring HBL5679C

Wiring Device-Kellems HBL5679C 1-Phase Flanged Standard Sized Screw Mount Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Receptacles
4486202 HBL5679C
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 15
  • Color: White
  • Dimensions: 1.72 x 2.56 x 2.56
  • Grade: Commercial/Industrial
  • Material: Thermoplastic/Composite
  • Nema Rating: 6-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Flanged Standard Sized Screw Mount
  • Voltage Rating: 250
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Flanged Standard Sized Screw Mount, 250 VAC, 15 A, 2 Pole, 3 Wires, 6-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, White, 1.72 x 2.56 x 2.56 in
  • Features
  • Backwired terminations for ease of installation
  • #8-32 multiple drive terminal screws
  • #14 to 12 AWG copper conductor
