Hubbell Wiring HBL60W48

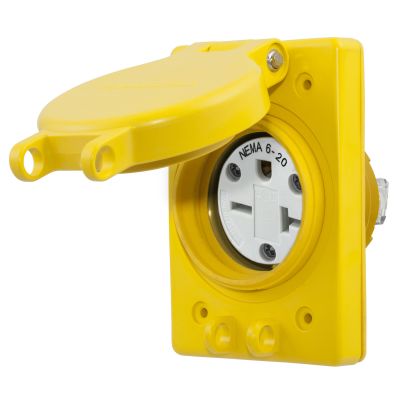

Wiring Device-Kellems HBL60W48 1-Phase Standard Watertight Screw Mount Straight Blade Receptacle With Lift Cover, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Receptacles
7552825
HBL60W48
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Dimensions: 3.1 in L x 5 in W x 4.56 in H
- Enclosure: NEMA 4/4X/6/6P/12/IP65/IP66/IP67
- Material: Composite
- Nema Rating: 6-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Standard Watertight Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Standard Watertight Screw Mount, 250 VAC, 20 A, 2 Pole, 3 Wires, 6-20R NEMA Rating, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 3.1 in L x 5 in W x 4.56 in H
- Features
- Impact resistant PBT lid, cover plate and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion resistant connection points
