Hubbell Wiring HBL67W47

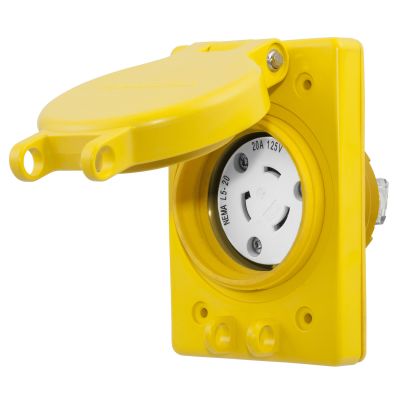

Wiring Device-Kellems Twist-Lock HBL67W47 1-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle With Lift Cover, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Receptacles
7566913
HBL67W47
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Dimensions: 4.56 x 3.1 x 2.92
- Enclosure: NEMA 4/4X/6/6P/12/IP65/IP66/IP67
- Grade: Industrial
- Material: Elastomer/Composite
- Nema Rating: L5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Screw
- Type: 1-Phase Grounding Standard Single Watertight Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Standard Single Watertight Screw Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 4.56 x 3.1 x 2.92 in
- Features
- Impact-resistant PBT lid, cover plate and receptacle body
- Stainless steel hardware and corrosion-resistant connection points
- Thermoplastic elastomer seal
