Hubbell Wiring HBL67W49

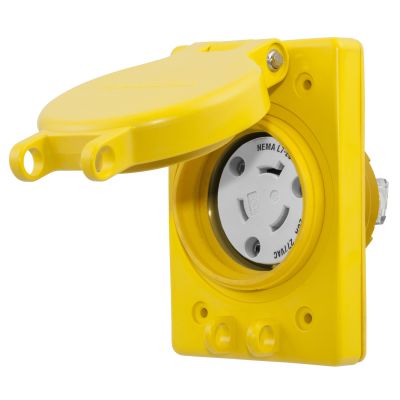

Wiring Device-Kellems Twist-Lock HBL67W49 1-Phase Grounding Single Standard Watertight Screw Mount Locking Receptacle With Lift Cover, 277 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Receptacles
7554667 HBL67W49
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 20
  • Color: Yellow
  • Dimensions: 4.56 x 3.1 x 2.92
  • Enclosure: IP65/IP66/IP67/IP69K
  • Grade: Industrial
  • Horsepower: 2
  • Material: Elastomer/Composite
  • Nema Rating: L7-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 60
  • terminal type: Screw
  • Type: 1-Phase Grounding Single Standard Watertight Screw Mount
  • Voltage Rating: 277
Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Single Standard Watertight Screw Mount, 277 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L7-20R NEMA Rating, Industrial Grade, IP65/IP66/IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 4.56 x 3.1 x 2.92 in
  • Features
  • Impact resistant PBT lid, cover plate and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion resistant connection points
