Hubbell Wiring HBL67W75

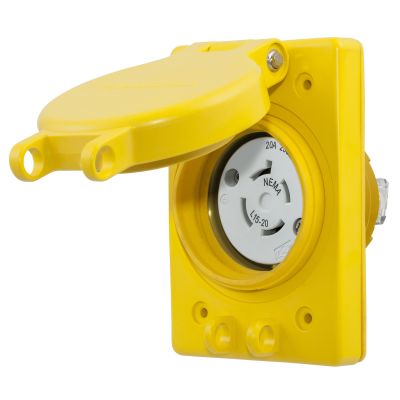

Wiring Device-Kellems Twist-Lock HBL67W75 3-Phase Grounding Single Standard Watertight Screw Mount Locking Receptacle With Lift Cover, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
Receptacles
7566914
HBL67W75
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Dimensions: 4.56 x 3.1 x 2.92
- Enclosure: IP65/IP66/IP67/IP69K
- Grade: Industrial
- Horsepower: 3
- Material: Elastomer/Composite
- Nema Rating: L15-20R
- Number of Poles: 3
- Number Of Wires: 4
- Temperature Rating: -40 to 60
- terminal type: Screw
- Type: 3-Phase Grounding Single Standard Watertight Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Twist-Lock Locking Receptacle, 3-Phase Grounding Single Standard Watertight Screw Mount, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R NEMA Rating, Industrial Grade, IP65/IP66/IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 4.56 x 3.1 x 2.92 in
- Features
- Impact resistant PBT lid, cover plate and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion resistant connection points
