Hubbell Wiring HBL67W76BK

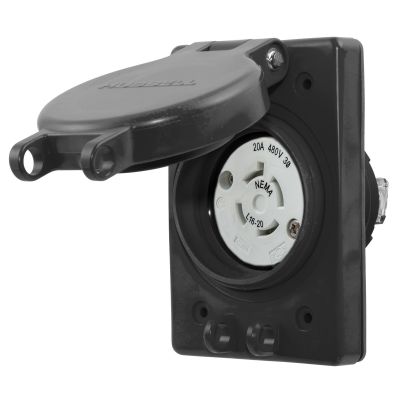

Wiring Device-Kellems Twist-Lock HBL67W76BK Grounding Single Watertight Locking Receptacle With Lift Cover, 480 VAC, 20 A, 3 Poles, 4 Wires, Black
Receptacles
7565752 HBL67W76BK
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 20
  • Material: Composite/Elastomer
  • Color: Black
  • Dimensions: 4.56 x 3.1 x 2.92
  • Enclosure: NEMA 4/4X/6/6P/12/IP65/IP66/IP67
  • Grade: Industrial
  • Nema Rating: L16-20R
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 60
  • terminal type: Screw
  • Type: Grounding Single Watertight
  • Voltage Rating: 480
Wiring Device-Kellems Twist-Lock Locking Receptacle, Grounding Single Watertight, 480 VAC, 20 A, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Composite/Elastomer, Black, 4.56 x 3.1 x 2.92 in
  • Features
  • Impact resistant PBT lid, cover plate and receptacle body
  • Stainless steel hardware and corrosion-resistant connection points
  • Thermoplastic elastomer seal
