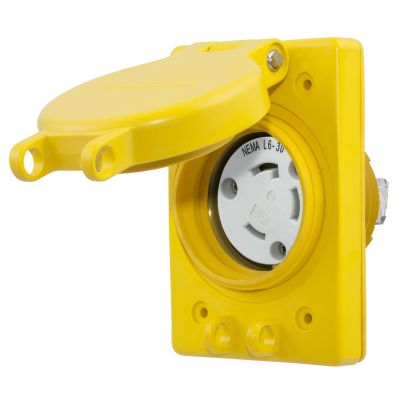

Hubbell Wiring HBL69W48
Wiring Device-Kellems Twist-Lock HBL69W48 1-Phase Grounding Single Standard Watertight Screw Mount Locking Receptacle With Lift Cover, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow
Receptacles
7655503
HBL69W48
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Dimensions: 4.56 x 3.1 x 2.92
- Enclosure: IP65/IP66/IP67/IP69K
- Grade: Industrial
- Horsepower: 2
- Material: Elastomer/Composite
- Nema Rating: L6-30R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Screw
- Type: 1-Phase Grounding Single Standard Watertight Screw Mount
- Voltage Rating: 250
Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Single Standard Watertight Screw Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30R NEMA Rating, Industrial Grade, IP65/IP66/IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 4.56 x 3.1 x 2.92 in
