Hubbell Wiring HBL69W76BK

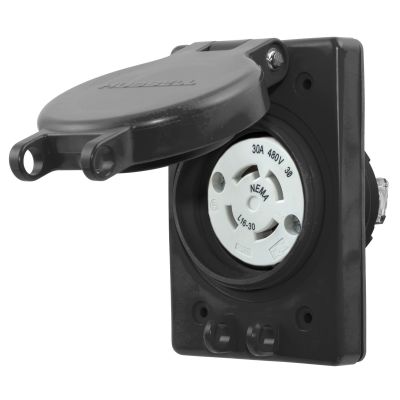

Wiring Device-Kellems Twist-Lock HBL69W76BK 1-Phase Grounding Single Watertight Screw Mount Locking Receptacle With Lift Cover, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
Receptacles
7572994
HBL69W76BK
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Black
- Dimensions: 4.56 x 3.1 x 2.92
- Enclosure: NEMA 4/4X/6/6P/12/IP65/IP66/IP67
- Grade: Industrial
- Material: Composite
- Nema Rating: L16-30R
- Number of Poles: 3
- Number Of Wires: 4
- Temperature Rating: -40 to 75
- terminal type: Back and Side Wired Screw
- Type: 1-Phase Grounding Single Watertight Screw Mount
- Voltage Rating: 480
Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Single Watertight Screw Mount, 480 VAC, 30 A, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Composite, Black, 4.56 x 3.1 x 2.92 in
- Features
- Impact resistant PBT lid, cover plate and receptacle body
- Stainless steel hardware and corrosion-resistant connection points
- Thermoplastic elastomer seal
