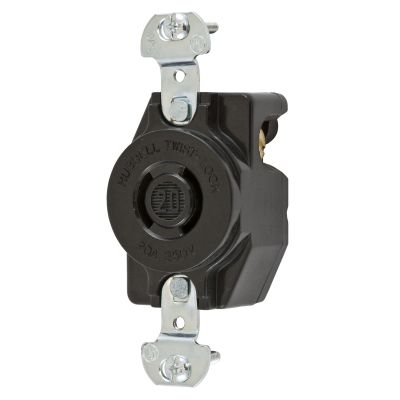

Hubbell Wiring HBL7210B

Wiring Device-Kellems Twist-Lock HBL7210B 1-Phase Non-Grounding Standard Single Screw Mount Locking Receptacle, 250 VAC, 20 A, 2 Poles, 2 Wires, Black
Receptacles
467696 HBL7210B
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 20
  • Color: Black
  • Dimensions: 3.28 x 1.4 x 1.3
  • Grade: Industrial
  • Horsepower: 2
  • Material: Thermoplastic
  • Nema Rating: L2-20R/WD1/WD5
  • Number of Poles: 2
  • Number Of Wires: 2
  • Temperature Rating: -40 to 75
  • terminal type: Screw
  • Type: 1-Phase Non-Grounding Standard Single Screw Mount
  • Voltage Rating: 250
Locking Devices, Twist-LockпїЅ, Industrial, Single Flush Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black phenolic.
  • Features
  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • High impact, abuse resistant nylon face
  • Flush mount
  • Indoor dry unless protected by additional means
  • Screw mount
  • 14 AWG wire
