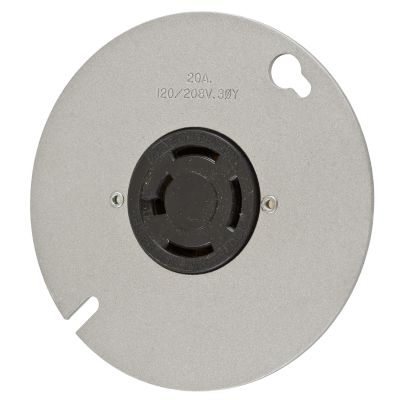

Hubbell Wiring HBL7417B
Wiring Device-Kellems Twist-Lock HBL7417B 3-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount Locking Receptacle, 120Y/208 VAC, 20 A, 4 Poles, 4 Wires, Black
Receptacles
5836078
HBL7417B
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Black
- Dimensions: 4.14 x 4.14 x 1.28
- Grade: Industrial
- Material: Nylon
- Number of Poles: 4
- Number Of Wires: 4
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 3-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount
- Voltage Rating: 120Y/208 VAC
Wiring Device-Kellems, HBL7417B, Locking Receptacle, 3-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount, 120Y/208 VAC, 20 A, 4 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black, 4.14 x 4.14 x 1.28 in Dimensions
- Features
- All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- High impact, abuse resistant nylon face
