Hubbell Wiring HBL7466

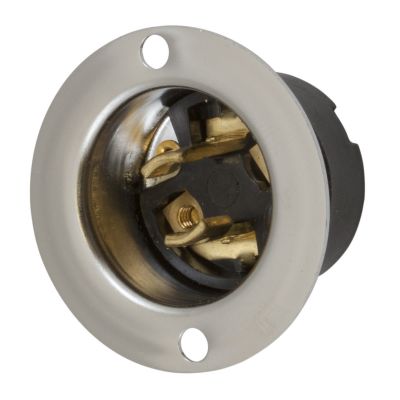

Wiring Device-Kellems Twist-Lock HBL7466 1-Phase Heavy Duty Midget Non-Grounding Screw Mount Locking Flanged Inlet, 125 VAC, 15 A, 2 Poles, 2 Wires, Black
Receptacles
517602
HBL7466
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Dimensions: 1.63 x 1.63 x 0.94
- Enclosure: IP20
- Grade: Industrial
- Material: Nylon
- Nema Rating: ML-1P
- Number of Poles: 2
- Number Of Wires: 2
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Heavy Duty Midget Non-Grounding Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Twist-Lock Locking Flanged Inlet, 1-Phase Heavy Duty Midget Non-Grounding Screw Mount, 125 VAC, 15 A, 2 Pole, 2 Wires, ML-1P NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.63 x 1.63 x 0.94 in
- Features
- Stainless steel mounting flange
- High heat-resistant phenolic base
- Withstands 2000 VAC minimum dielectric voltage
- 18 to 14 AWG solid or stranded copper wire terminal accommodation
- NO 5-40 brass terminal screw
