Hubbell Wiring HBL7524C

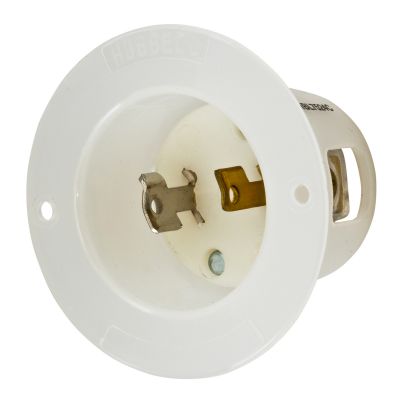

Wiring Device-Kellems Twist-Lock Insulgrip HBL7524C 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount Locking Flanged Inlet With Mounting Screw, 125 VAC, 15 A, 2 Poles, 2 Wires, White
Receptacles
600505
HBL7524C
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: White
- Dimensions: 2.56 x 2.56 x 1.72
- Enclosure: IP20
- Grade: Industrial
- Material: Nylon
- Nema Rating: L1-15P
- Number of Poles: 2
- Number Of Wires: 2
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL7524C, Locking Flanged Inlet, 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount, 125 VAC, 15 A, 2 Pole, 2 Wires, L1-15P NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.56 x 2.56 x 1.72 in Dimensions
- Features
- Clear polycarbonate terminal retainer
- Brass blade
- 0.062 in cold rolled steel nickel plated terminal clamp
- #32-8 brass terminal screw
- #32-8 brass (green finish) ground screw
- Natural white nylon flanged casing
- Zinc plated brass mounting screw
- Molded-in or stamped-on ratings
- Permanently ink marked on product catalog number
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Terminals identified in accordance with UL 498 (x, y, z, white, green)
- Impact resistant thermoplastic construction
- Back wired terminations for ease of installation
- 15 A 14 AWG terminal accommodation
- Indoor dry environmental conditions unless protected by additional means
- Screw mounted
- 14 AWG wire
