Hubbell Wiring HBL7526C

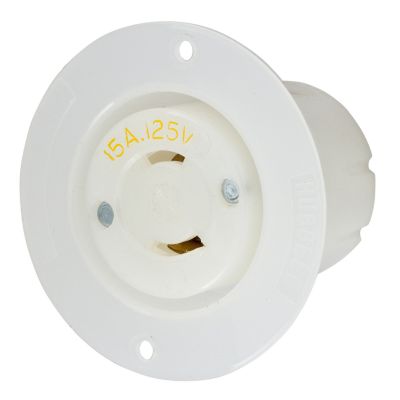

Wiring Device-Kellems Twist-Lock Insulgrip HBL7526C 1-Phase Non-Grounding Standard Screw Mount Locking Flanged Receptacle, 125 VAC, 15 A, 2 Poles, 2 Wires, White
Receptacles
4486225
HBL7526C
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: White
- Dimensions: 2.56 x 2.56 x 1.72
- Enclosure: IP20
- Grade: Industrial
- Material: Nylon
- Nema Rating: L1-15R
- Number of Poles: 2
- Number Of Wires: 2
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Non-Grounding Standard Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL7526C, Locking Flanged Receptacle, 1-Phase Non-Grounding Standard Screw Mount, Series: HBL, 125 VAC, 15 A, 2 Pole, 2 Wires, L1-15R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.56 x 2.56 x 1.72 in Dimensions
- Features
- Impact resistant thermoplastic construction
- Back wired terminations for ease of installation
- 32 to 8 AWG multiple drive terminal screws slotted, Phillips® and Robertson
