Hubbell Wiring HBL7540

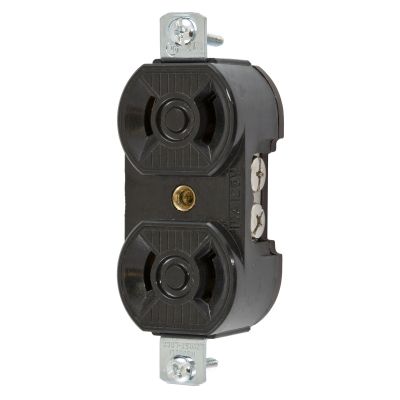

Wiring Device-Kellems Twist-Lock HBL7540 1-Phase Duplex Non-Grounding Standard Traditional Screw Mount Locking Receptacle, 125 VAC, 15 A, 2 Poles, 2 Wires, Black
Receptacles
442489
HBL7540
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Dimensions: 3.28 x 1.32 x 1.19
- Grade: Industrial
- Horsepower: 1/2
- Material: Thermoplastic
- Nema Rating: L1-15R/WD1/WD5
- Number of Poles: 2
- Number Of Wires: 2
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Duplex Non-Grounding Standard Traditional Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Duplex Non-Grounding Standard Traditional Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 2 Wires, L1-15R/WD1/WD5 NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Black, 3.28 x 1.32 x 1.19 in
- Features
- Thermoset construction offers high heat resistance
- High performance copper alloy contacts
- Corrosion resistant zinc plated steel one piece mounting strap
- Indoor dry unless protected by additional means
- Screw mount
- 14 AWG wire
