Hubbell Wiring HBL7556

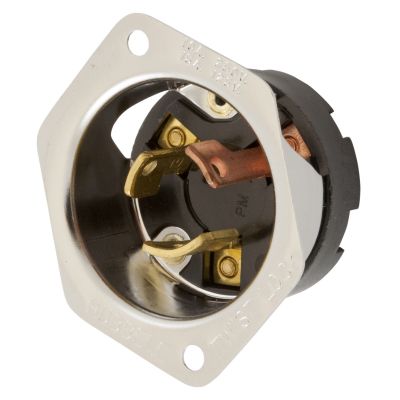

Wiring Device-Kellems Twist-Lock HBL7556 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount Locking Flanged Inlet With Mounting Screw, 125/250 VAC, 10/15 A, 3 Poles, 3 Wires, Black
Receptacles
1555165
HBL7556
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 10/15
- Color: Black
- Dimensions: 2.31 x 2.31 x 1.13
- Enclosure: IP20
- Grade: Industrial
- Material: Stainless Steel
- Number of Poles: 3
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount
- Voltage Rating: 125/250
Wiring Device-Kellems, HBL7556, Locking Flanged Inlet, 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount, 125/250 VAC, 10/15 A, 3 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Stainless Steel, Black, 2.31 x 2.31 x 1.13 in Dimensions
- Features
- Brass blade
- #32-8 brass terminal screw
- 0.025 in stainless steel flanged casing
- Nickel plated brass mounting screw
- Molded-in or stamped-on ratings
- Permanently ink marked on product catalog number
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- 15 A 14 AWG terminal accommodation
- Terminals identified in accordance with UL 498 (x, y, z, white, green)
- UL94 V-0 for receptacles and inlets, HB or better for plugs and connectors flammability
- Heat resistant thermoset construction
- Indoor dry environmental conditions unless protected by additional means
- Screw mounted
- Non-NEMA rated
- 14 AWG wire
- Metallic flange
