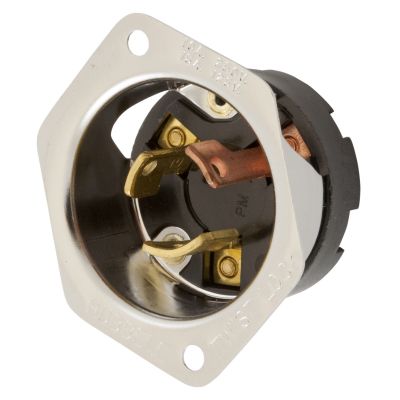

Hubbell Wiring HBL7556G
Wiring Device-Kellems Twist-Lock HBL7556G 1-Phase Extra Heavy Duty Grounding Standard Screw Mount Locking Flanged Inlet With Mounting Screw, 125/250 VAC, 10/15 A, 2 Poles, 3 Wires, Black
Receptacles
436950
HBL7556G
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 10/15
- Color: Black
- Dimensions: 2.31 x 2.31 x 1.13
- Enclosure: IP20
- Grade: Industrial
- Material: Stainless Steel
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Extra Heavy Duty Grounding Standard Screw Mount
- Voltage Rating: 125/250
Wiring Device-Kellems Twist-Lock Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Standard Screw Mount, 125/250 VAC, 10/15 A, 2 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Stainless Steel, Black, 2.31 x 2.31 x 1.13 in
- Features
- #40-5 terminal screws
- Heat resistant thermoset construction
- Stainless steel casing
- Indoor dry environmental conditions unless protected by additional means
- Screw mounted
- Non-NEMA rated
- 14 AWG wire
- Metallic flange
