Hubbell Wiring HBL7598

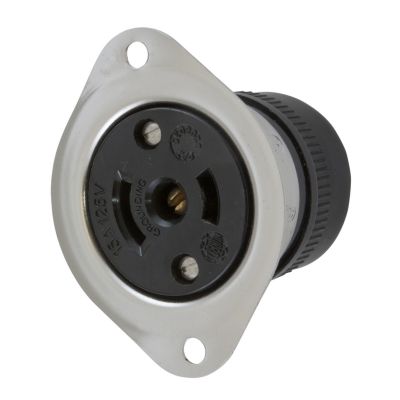

Wiring Device-Kellems Midget Twist-Lock HBL7598 1-Phase Flanged Heavy Duty Grounding Mid Gate Standard Screw Mount Locking Flanged Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Receptacles
463274
HBL7598
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Black
- Cord Diameter: 1/2
- Dimensions: 2.06 x 1.62 x 1.25
- Enclosure: IP20
- Grade: Industrial
- Material: Stainless Steel
- Nema Rating: ML-2R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 70
- terminal type: Screw
- Type: 1-Phase Flanged Heavy Duty Grounding Mid Gate Standard Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems, HBL7598, Locking Flanged Receptacle, 125 VAC, 15 A, 2 Pole, 3 Wires, ML-2R NEMA Rating, Industrial Grade, IP20 Enclosure, 1/2 in Diameter Cord, -40 to 70 deg C, Screw Terminal, Stainless Steel, Black, 2.06 x 1.62 x 1.25 in Dimensions
- Features
- #5-40 brass terminal screw
- Brass (green) ground screw
- 0.032 in bronze contact spring
- 1/4 in stainless steel flanged casing
- Nickel plated brass round head mounting screw
- 0.032 in bronze ground contact
- Molded-in or stamped-on ratings
- Permanently ink marked on product catalog number
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Terminals identified in accordance with UL 498 (x, y, z, white, green)
- UL94 V-0 for receptacles and inlets, HB or better for plugs and connectors flammability
- Covered terminals
- High heat resistant phenolic base
- Indoor dry environmental conditions unless protected by additional means
- Screw mounted
- 14 AWG wire
