Hubbell Wiring HBL7958

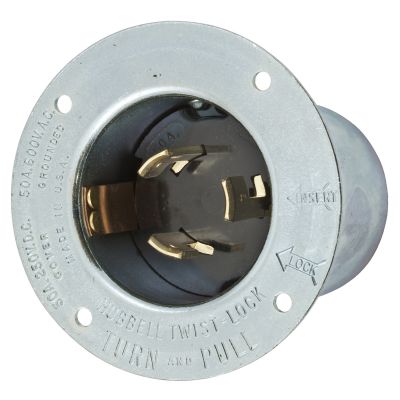

Wiring Device-Kellems Twist-Lock HBL7958 3-Phase Extra Heavy Duty Grounding Standard Screw Mount Locking Flanged Inlet, 600 VAC/250 VDC, 50 A, 3 Poles, 4 Wires, Metallic
Receptacles
603588 HBL7958
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 50
  • Color: Metallic
  • Dimensions: 2.14 x 3.5 x 2.62
  • Grade: Industrial
  • Material: Steel
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: 3-Phase Extra Heavy Duty Grounding Standard Screw Mount
  • Voltage Rating: 600 VAC/250 VDC
Locking Devices, Twist-LockпїЅ, Industrial, Flanged Inlet, 50A 250V/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior, Metallic
  • Features
  • Metallic flanged casing provides maximum strength and protection
  • Thermoset interior provides superior heat resistance
  • For replacement only
  • Indoor dry environmental conditions unless protected by additional means
  • Screw mounted
  • Non-NEMA rated
  • 6 AWG wire
