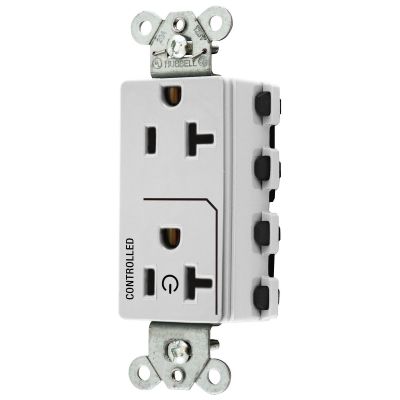

Hubbell Wiring SNAP2162C1W
Wiring Device-Kellems SNAPConnect Style Line SNAP2162C1W 1-Phase Decorator Duplex Extra Heavy Duty Standard Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
7618802
SNAP2162C1W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Dimensions: 3.28 x 1.64 x 1.1
- Grade: Commercial/Industrial/Specification
- Horsepower: 1
- Material: Nylon
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Connectorized
- Type: 1-Phase Decorator Duplex Extra Heavy Duty Standard Screw Mount
- Voltage Rating: 125
Wiring Device-Kellems SNAPConnect Style Line Straight Blade Receptacle, 1-Phase Decorator Duplex Extra Heavy Duty Standard Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Connectorized Terminal, Nylon, White, 3.28 x 1.64 x 1.1 in
- Features
- Modular wiring system eliminates screw terminals
- Speeds installation and trim out
- Clear polycarbonate terminal housing to inspect contacts
- Abuse resistant nylon for extra heavy use applications
- Stainless steel auto ground
- Audible SNAP, indicates solid connection
- Permanent power symbol remains clearly visible after installation
- Self-grounding clip which makes installation easy
- These receptacles are embossed with the universally recognized power symbol and the word CONTROLLED remains clearly visible after installation
- Control both outlets per device for 100% controlled applications or just one outlet for 50% controlled applications
