Hubbell Wiring SNAP5262WA

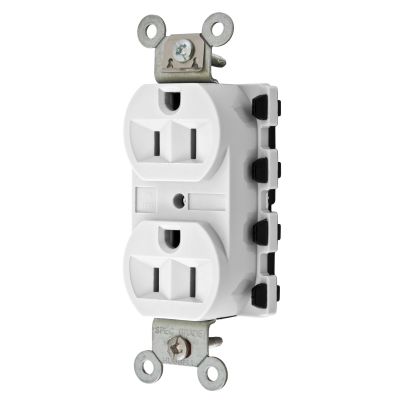

Wiring Device-Kellems SNAPConnect SNAP5262WA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Receptacles
7356859
SNAP5262WA
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: White
- Dimensions: 3.28 x 1.64 x 1.1
- Grade: Specification
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Connectorized
- Type: 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount
- Voltage Rating: 125
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Nylon, White.
- Features
- Abuse resistant nylon for extra heavy use applications
- Stainless steel autoground
- SNAPConnect® eliminates exposed live terminals on the device
- Extra heavy duty receptacle
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
- Nylon top, RTP base, brass by-pass power contacts, wire clamps, mounting strap, lime terminal screws, ground screw and center assembly rivet, stainless steel automatic self grounding clip, steel zinc plated flat head mounting screws, steel-nickel finish ground tension clips
- Receptacle certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating
- Screw mounted
